THE FELIX BIOPRINTER
HIGH PERFORMANCE , CUSTOMIZABLE 3D BIOPRINTING
If you are looking for the ultimate 3D printing bio research instrument in a cost – effective package, then you need look no further than the FELIX BIOPrinter.
The FELI X BIOprinter is designed to extrude a broad spectrum of material types and viscosities, and is ideal for the researcher who values ease – of – use, and who needs a system
which can be customized for the precise requirements of a particular application.
The Felix BIOprinter is made with design freedom in mind, and includes various features that enhance the accuracy of the printing process, while at the same time ensuring that process is cost effective and easily sterilisable.
The Felix BIOprinter is issued with CE certification, and is hand- made in the Netherlands meaning that you can have ultimate confidence in its quality and reliability.
The FELIX BIOprinter is appropriate for all types of bioprinting research, and is equipped with strong motors that can extrude a range of different viscosity materials.
Technical Specifications
Layer Resolution: to 50 microns
Build Plate: Aluminium sandwich plate with steel flexplate.
Print head: Dual syringe operation
Syringe Specs: 5 ml syringe(s)
Build Speed/s: Recommended build speed is 20 mm/s. Speed depends on material viscosity.
Typical print accuracy: ± 0.05 mm for sizes below 20 mm
Syringe Min/Max print temperatures: 0-50 ˚C
Syringe heat up time / cooling times: 10 seconds
XYZ resolution: XY, 1.6 microns, Z: 0.15 micron
Dimensions & Weight: 430 x 390 x 550 mm, 11.5kg
Build Volume: XYZ = 130 x 210 x 130 mm
Extrusion width: greater than 0.1mm, depending on nozzle size
Extrusion resolution: 0.000180 ml per step

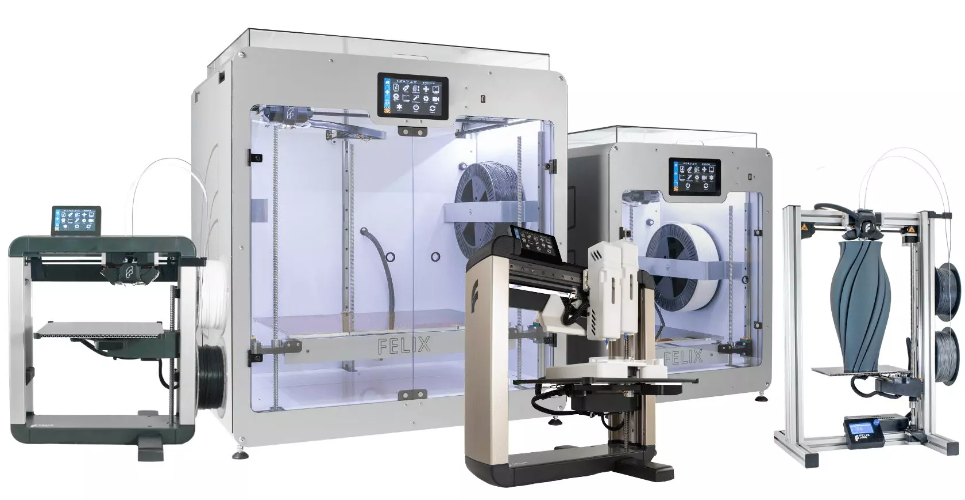

FELIX Pro L
The FELIX Pro L additive manufacturing systems have been designed to perform at scale, and both 3D printers have been constructed to ensure reliable output for much larger parts. These are manufacturing tools for every stage of the product development and manufacturing workflow with an optimal price | performance ratio.
Pro L building size: 300 x 400 x 400 mm or 11.8” x 15.75” x 15.75”


FELIX Pro XL
The FELIX Pro XL additive manufacturing systems have been designed to perform at scale, and both 3D printers have been constructed to ensure reliable output for much larger parts. These are manufacturing tools for every stage of the product development and manufacturing workflow with an optimal price / performance ratio.
Building size: 600 x 400 x 600 mm or 23.62″ x 15.75″ x 23.62″



FELIX Pro L
The FELIX Pro L additive manufacturing systems have been designed to perform at scale, and both 3D printers have been constructed to ensure reliable output for much larger parts. These are manufacturing tools for every stage of the product development and manufacturing workflow with an optimal price | performance ratio.
Pro L building size: 300 x 400 x 400 mm or 11.8” x 15.75” x 15.75”


FELIX Pro 3 Touch
Intelligent 3D Printing
The FELIX Pro 3 is the latest addition to the Pro Series of 3D printers and builds on the success of its predecessors in terms of quality and reliability to provide professional users with an intuitive, easy-to-use manufacturing tool for every stage of their product development workflow.


Felix Pro 2
Professional Quality Easy To Use.
Interchangeable full-metal hot-ends, highly accurate sensors, smoother print results, optimized filament feed and advanced filament detection.
Find out more about the incredible features of the FELIX Pro 2 below.


Felix Pro 2 Touch
The Smart 3D Printer
The FELIX Pro 2 Touch is a smart 3D printer with Wi-Fi for local connectivity, interchangeable full-metal hot-ends, highly accurate sensors, and an amazingly low level of noise production.
Find out more about the incredible features of the FELIX Pro 2 Touch below.


Felix Tec 4
Providing the best tool for creators
The Tec 4 is designed to give you the freedom to build what’s on your mind.
At FELIXprinters we wanted to create a 3D printer which gives users a tool to create, to experiment and to benefit from amazing 3D printing technologies.
Closely cooperating with the FELIX community has made us understand what is desired from a 3D printer.
All the knowledge and experience we have gained in the last years are now integrated into one product: the FELIX Tec 4.


Felix Tec 4 DIY-Kit
Providing the best tool for creators
The Tec 4 is designed to give you the freedom to build what’s on your mind.
At FELIXprinters we wanted to create a 3D printer which gives users a tool to create, to experiment and to benefit from amazing 3D printing technologies.
Closely cooperating with the FELIX community has made us understand what is desired from a 3D printer.
All the knowledge and experience we have gained in the last years are now integrated into one product: the FELIX Tec 4.
