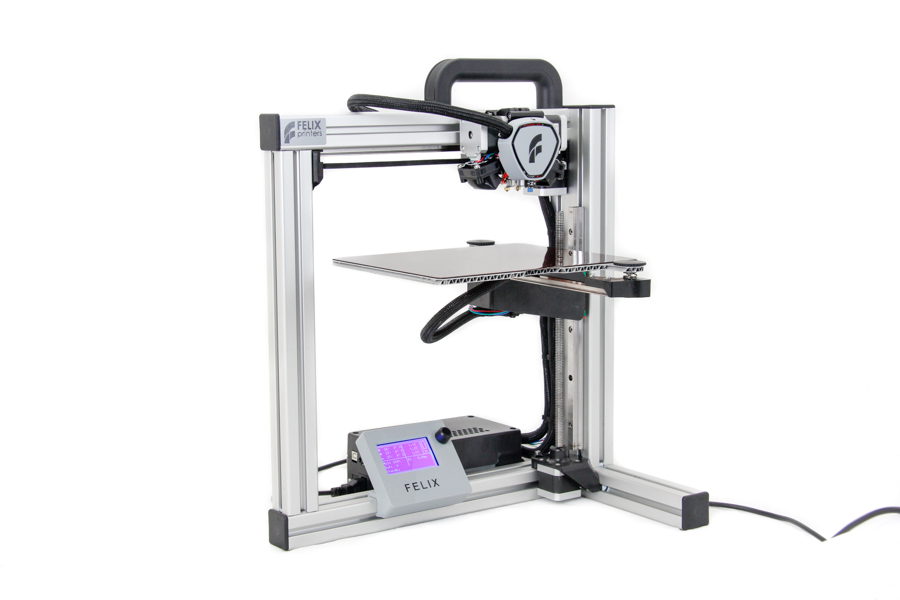

FELIX Tec 4 DIY-Kit

Felix Tec 4 DIY-Kit

The FELIX  Tec 4 is know as a work horse among 3D Printers.
Enjoy reliable printing and professional print quality and easily
convince your customers with the printed results.

Use any available printing material

Our open filament system enables you to use filament from any supplier.
The only restriction is that the filament shouldmelt below 275°C
and it must have a 1.75mm diameter.
We provide a recommended selection of filament which is extensively tested
to achieve optimal 3d printing performance.
5 years of upgrades

Proven performance and reliability

The FELIX 3 series has undergone a large list of incremental
improvements over the years starting from the FELIX 1.0.
These updates were all born from feedback of our wide user base
and make this printer a rock solid performer.

Specifications

Dimensions: 450mm x 410mm x 520mm

Weight: 9Kg

225mm(240 dual head) x 205mm x 220mm

Layer resolution: Low: 250 microns, Normal: 200 microns, High: 150 microns, Very High: 100 microns, Extreme: 50 microns

Print technology: Fused Filament Fabrication

Nozzle diameter: 0.35 mm standard for both nozzles (0.25, 0.5, 0.7 mm optional)

Nozzle temperature: Up to 275 °C

Filament diameter: 1.75 mm

Supported materials: PLA, PETG, ABS,PVA, FLEX

Software: Including Formide (Online Platform)

Supported file types: STL, AMF, OBJ, 3DS

Input:  100 – 240V 4A, 50-60Hz, 221W max.

Output: 24V DC, 9.2A

A comprehensive 12 month warranty
